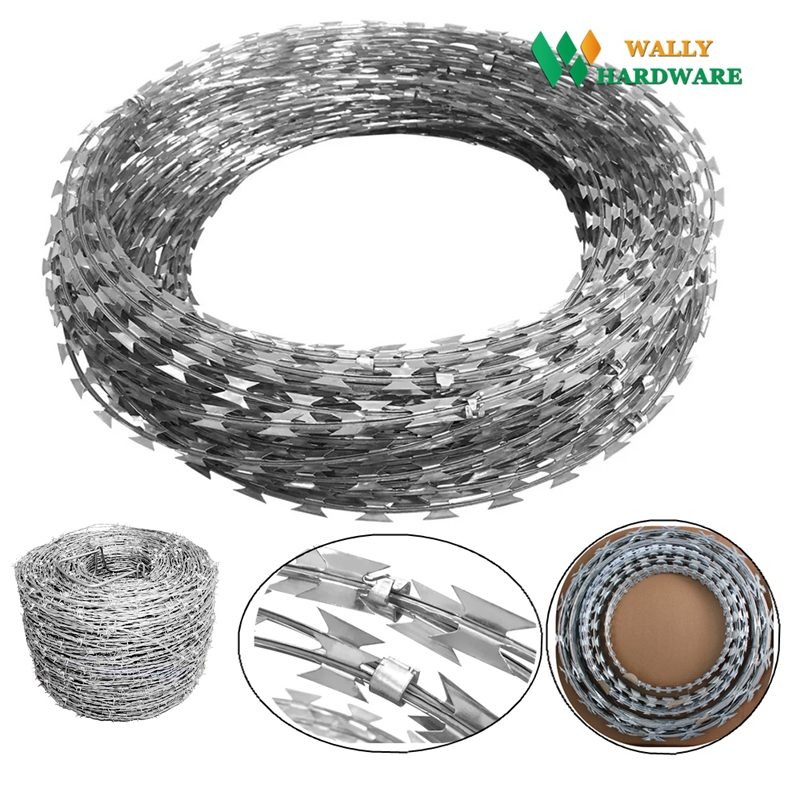

Hot dipped Galvanized Concertina Razor Barbed Wire

Packaging Details:Water Proof Paper, Wooden Case And Pallet
Supply Ability:2000000 Piece/Pieces per Week
Delivery Time:15 Days
Port:Tianjin Xingang

OVERVIEW

Concertina Razor Wire Specifications

Type:                                            BTO-28
Thickness of the steel plate:  0.5mm
Wire Diameter:                           2.5mm
Blade length:                               28mm
Blade width:                                15mm
Blade spacing:                            45mm
Coil Diameter:                             450mm-1500MM
Coil Length:                                 8Mtr – 15Mtr

Concertina BTO-28 is manufactured in stainless steel or HOT dipped galvanized steel
Razor wire Other Specifications: BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.

Hot dipped Galvanized Concertina Razor Barbed Wire

The Concertina 28 model is very similar to the model Concertina 25 but with some minor differences, is defined by its blade 28 mm wide, belonging to the group of more standard models concertinas, with a space between blades of 45 mm. 28 contains additional concertina wire reinforcement, this reinforcement situated on both sides of the wire and with a height of 2 mm, provides extra reinforcement concertina to increase its strength.
The diameter of this type of concertina is 450 mm – 1500 mm, but have different action on other models of concertinas, special measures such as 630.700, 815 or 957 mm.
The concertina 28 made ​​of stainless steel or galvanized wire high strength 1400-1600 MPa.

The sectors requiring this type of concertinas are places with medium-high levels of security, such as borders, power plants or refineries and many others.

  • Measure of Concertina BTO-28
ThicknessØ WireRazor longRazor widthSpace between razors
0,5 mm+0.052,5 mm+0.128 mm+115 mm+145 mm+1
  •  Technical specifications
Diameter (mm)Nº ClipsLineal meters (m)
45038-11
50039-12
57039-12
60039-12
63039-12
7005/39-12/13-16
7305/39-12/13-16
8155/39-12/13-16
975511-14
980511-14
1250712-15
1500912-15

Mateiral
 Razor wire Other Specifications:   BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.

Concertina BTO-28 is manufactured in stainless steel or galvanized steel, in the following characteristics:

  1. Stainless Steel EN 1.4016 – AISI 430
  2. Stainless Steel EN 1.4301 – AISI 304
  3. Stainless Steel EN 1.4401 – AISI 316
  4. Heavy Galvanized steel Z230 – Z275 (G75-G90)
  5. High Tensile: 1300 – 1600 MPa
  6. Nº Coils: 55±1



BARBED WIRE / ALAMBRE DE PUAS

High tensile Barbed wire, also known as bob wire, is the most important component of barbed wire fence system. It can be used individually to form the barbed wire fence, and it also can be attached onto various fences, such as chain link fencewelded wire mesh fenceexpanded mesh fence or fence for high level security barrier. With the features of sharp edge, high tensile strength and corrosion, rust resistance, they are widely used for prison fencing, airport fencing, farm fencing, ranch fencing, residence fencing, large construction site fencing and so on.

Barbed Wire Surface Treatment: hot dipped galvanized, electro or PVC Coated
Material: Q195, Q235
Resistance Force:
1) Soft: 380n / mm2 (ABT)
2) High Strength, Strong 800N / mm2 – 1200N / mm2 (ABT)

Zinc coating: Class III or Class I

Arame farpado

Twist Type

A= Single strand

B=Reversed twist

C=Regular twist

Market:USA,Brazil,Australia etc.

Widely used in Agriculture,Animal husbandry, Dwelling house,Plantation,Fencing etc.

THE DIFFERENT TYPES IN DIFFERENT MARKET

Main specifications of Barbed Wire

Calibre Del cable17G X 17G16.5G X 17G16.5G X 16.5G16G X 16G15.5GA14G X 14G14G X 12G12G X 12G
 Longitud del rollo50 M, 100 M, 200 M, 300 M, 400 M, 500 M etc como petición
 Barb Espacio4 “, 5 “, 6 “
