500mm /BTO-22 – Concertina Razor Ribbon Barbed Wire

29 Views

Concertina Razor Wire Specifications Type: BTO-22 Thickness of the steel plate: 0.5mm Wire Diameter: 2.5mm Blade length: 22mm Blade width: 15mm Blade spacing: 34mm Coil Diameter: 450mm-1500MM Coil Length: 8Mtr - 15Mtr Concertina BTO-22 is manufactured in stainless steel or HOT dipped galvanized steel Razor wire Other Specifications: BTO-12, BTO-15, BTO-18,BTO-30, CBT-60, CBT-65.

Contact Now

Live Chat

Inquiry Basket

Category: Razor Blade WireTags: barbed tape,concertina wire,fil de boblet,flat razor fence,razor barrier,razor bibbon,razor tape,razor wire,ribbon barbed wire,security barrier,Spiral Razor Wire

product detail

CBT-22 – Reinforced Barbed Tape

The diameter of this type of concertina is 450 mm – 1500 mm, but we have different action on other models of concertinas, special measures such as 630, 640 or 955 mm.
Concertina Super H made of stainless steel or galvanized wire high strength 1400 – 1600 Mpa.
The sectors requiring this type of concertinas are places with high levels of security, such as prisons or military bases offer.

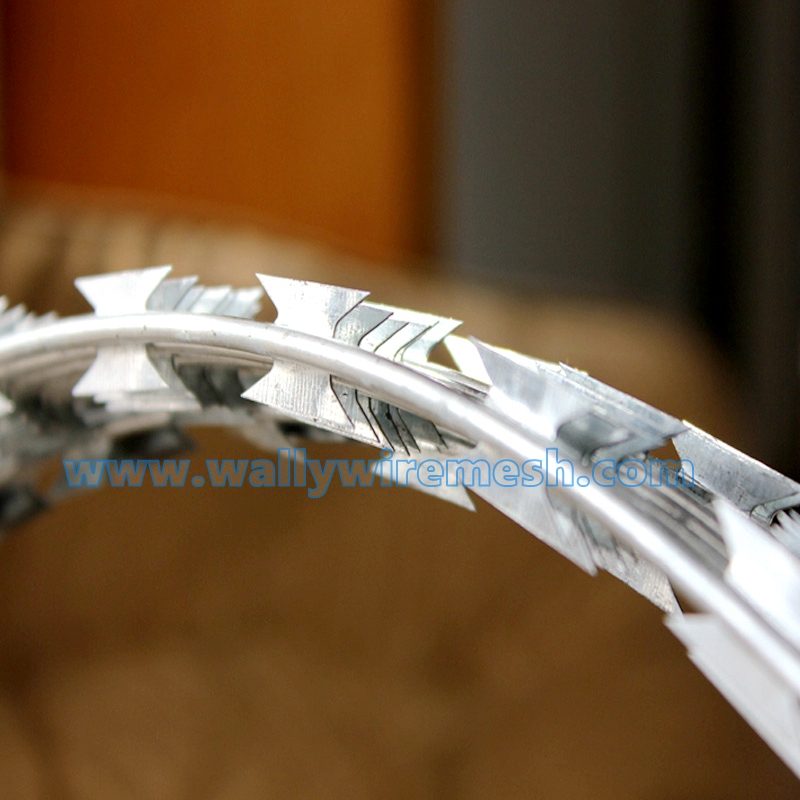

Razor wire cross section profile

Razor wire Other Specifications: BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60

Blade spec	Blade thickness mm	Core wire diameter mm	Blade length mm	Blade width mm	Blade space mm
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

Mateiral

Concertina CBT-22 is manufactured in stainless steel or galvanized steel, in the following characteristics:

Stainless Steel EN 1.4016 – AISI 430
Stainless Steel EN 1.4301 – AISI 304
Stainless Steel EN 1.4401 – AISI 316
Heavy Galvanized steel Z230 – Z275 (G75-G90)
High Tensile: 1300 – 1600 MPa

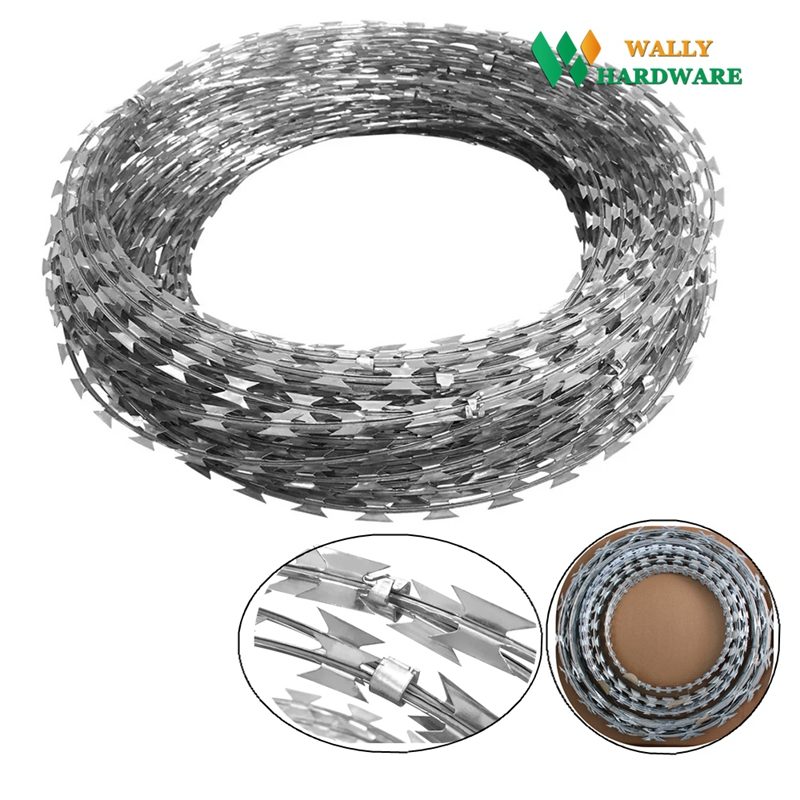

The razor wire coils are manufactured using mild steel wire and are equipped with sharp blades. It adds an anti-climb quality to almost all fences.

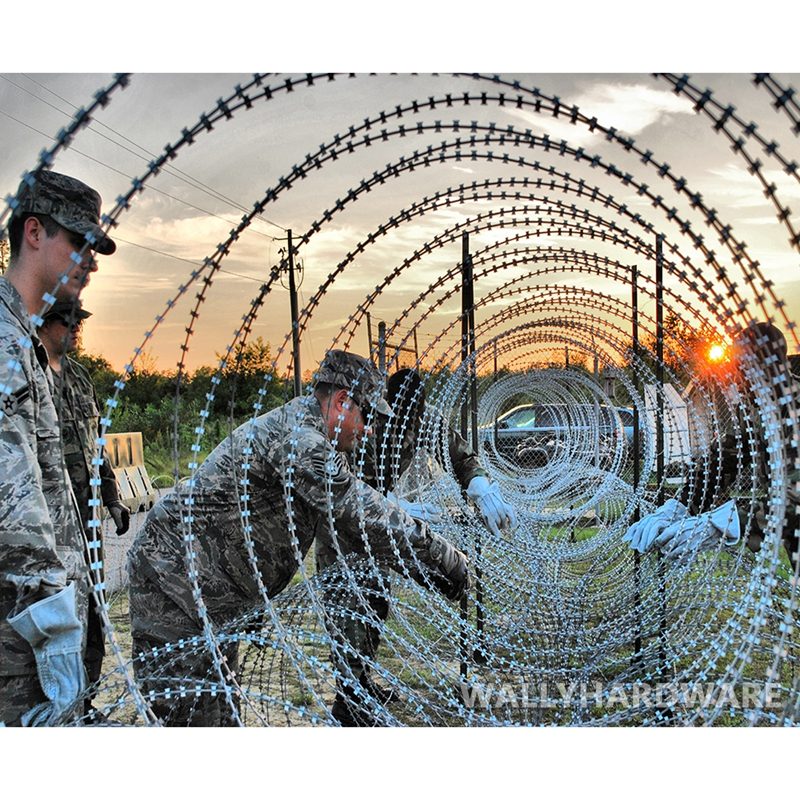

Galvanized razor wire often combines with chain link fence, field fence, welded wire fence, walls and gates to provide high security. Widely used in residential, commercial, military, garden, boundary and prisons.

Advantages of galvanized razor wire:

Zinc coating protects inside steel wire;
Sharp blades scares enemies away;
Silvery appearance warning people not climbing.
