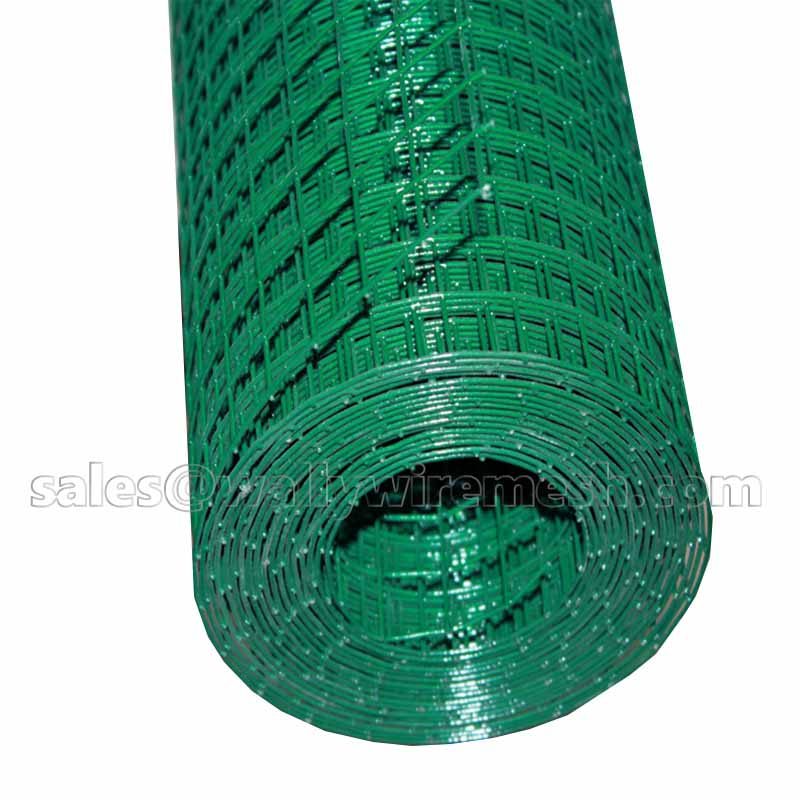

PVC Coated Welded Wire Mesh – Galvanised Light Steel Wire
Pvc Coated Welded wire mesh rolls are used in many applications such as garden fencing, dog fencing, perimeter fencing, security fences, chicken runs, rabbit hutches and pet enclosures. Our welded wire mesh rolls are manufactured from steel, welded and then hot-dipped dipped galvanised. The steel mesh is welded at each wire joint increasing the strength of the mesh structure and ensuring the product is durable and lon-lasting. The hot-dip process incorporates the steel mesh being immersed into molten zinc – the zinc encapsulates all the steel wire and weld joints making the weld mesh rolls corrosion / rust free.
Galvanised welded wire mesh rolls are available in many mesh apertures, both square and rectangular from1/4’(6mm) up to 2’(50mm). Roll widths / heights are available from 2ft (60cm) up to 6ft 1.8m. We provide mesh rolls in a range of wire thicknesses, with wire gauge diameters ranging from 16 gauge to 23 gauge. Rolls lengths vary from 6m to 30m long.
Typical light weld mesh uses:
- Garden fencing and perimeter / boundary fences
- Security cages and fences
- Dog fencing and other animal enclosures
- Protection for tree from rabbits
- Rabbit hutches
- Boardwalk anti-slip surfacing
- Permanent fruit cages
- Construction and plaster applications
- Use by sculptures
Installation of the welded wire mesh fencing is a simple process. The steel mesh should be fixed the treated timber posts (rounded, or square sawn) using galvanised wire u-nails / staples. Fencing posts need to be no more than 2m apart for a solid fence. We advise that all welded wire mesh should be installed with a galvanised fencing line wire The straining line wire can be tensioned and will ensure that the fence remains taut at its top. Further straining line wires can be installed for higher fences. Weld mesh can also be fixed to wooden post and rail fencing, frames and existing chain link fencing using nylon ties or hog-rings.
Aperture Size:
Our welded mesh is available in many mesh hole sizes:
- ¼”x ¼” (¼ inch, 6x6mm)
- ½” x ½” (½ inch, 13 x 13mm)
- ¾”x ¾” (¾ inch, 19 x 19mm)
- 1′ x ½’ (1 x ½ inch, 25 x 13mm)
- 1′ x 1′ (1 inch, 25 x 25mm)
- 2′ x 2′ (2 inches, 50 x 50mm)
Features:
- Hot-dipped zinc galvanised steel wire
- 16 gauge to 23 gauge steel wire diameters
- Steel mesh is welded before galvanisation
- Corrosion free coating
Our range is large and we should have the product suitable for your application. We also provide heavier-weight / thicker wire diameter welded wire mesh rolls.
Packaging & Shipping
Packing: by pvc shrinked or carton & pallet as request.
FAQ
Q: Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: What is your guarantee of quality?
A: Direct material producer, control quality from material .
Q: Do you have ISO & CE standard certificate ?
A: Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How can I get a quoation ?
A: The specification , surface treatment , openning , wire gauge , width & length ,order quantity, etc.
Q: How many days will the samples be finished? And how about the mass production?
A: Generally,2 days for samples ,the time of mass production depends on the quantity,25 -30 days.
We also produce stucco wire netting, rabbit fence, hardware cloth, chain link fence, deer fence, field fence
Most of our product are for export, well sold in the USA, Germany, Europe, Canada, Africa and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.
