Square Weave Wire Mesh Hebei Wally. commonly supplies Wire Cloth / square weave wire mesh in Carbon Steel, Galvanized Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Monel and many other exotic alloys Wally Group. can supply wire mesh in standard rolls, sheets, or cut to size pieces. We hav...

Square Weave Wire Mesh

Square weave wire mesh cloth, Hebei Wally. commonly supplies Wire Cloth / square weave wire mesh in Carbon Steel, Galvanized Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Monel and many other exotic alloys. There are numerous combinations of weaves, openings, and wire diameters available in woven or welded form. Wally Group. can supply wire mesh in standard rolls, sheets, or cut to size pieces.

Types of Wire Cloth Weaves:

Plain Weave

The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloth is not crimped before weaving, and each warp wire passes over/under the wires running through the cloth at 90 degree angles.

Twill Square Weave

Each warp and shute of the Twill Square Weave Wire Cloth, is woven alternately over two and under two warp wires. This gives the appearance of parallel diagonal lines, allowing the twill square weave wire cloth to be used with heavier wires with a particular mesh count (that is possible with the plain weave wire cloth). This ability allows the application of this wire cloth for greater loads and finer filtration.

Plain Dutch Weave

The Plain Dutch Weave Wire Cloth or wire filter cloth is woven the same way as the plain weave wire cloth. The exception of the plain dutch wire cloth weave is that the warp wires are heavier than the shute wires.

Twilled Dutch Weave

Our Twilled Dutch Weave Wire Cloth or Wire Filter Cloth, in which each wire passes over two and under two. With the exception that the warp wires are heavier than the shute wires. This type of weave is capable of supporting greater loads than the Dutch Weave, with finer openings than the Twilled Weave. It is used in applications where filtering of heavy material is necessary.

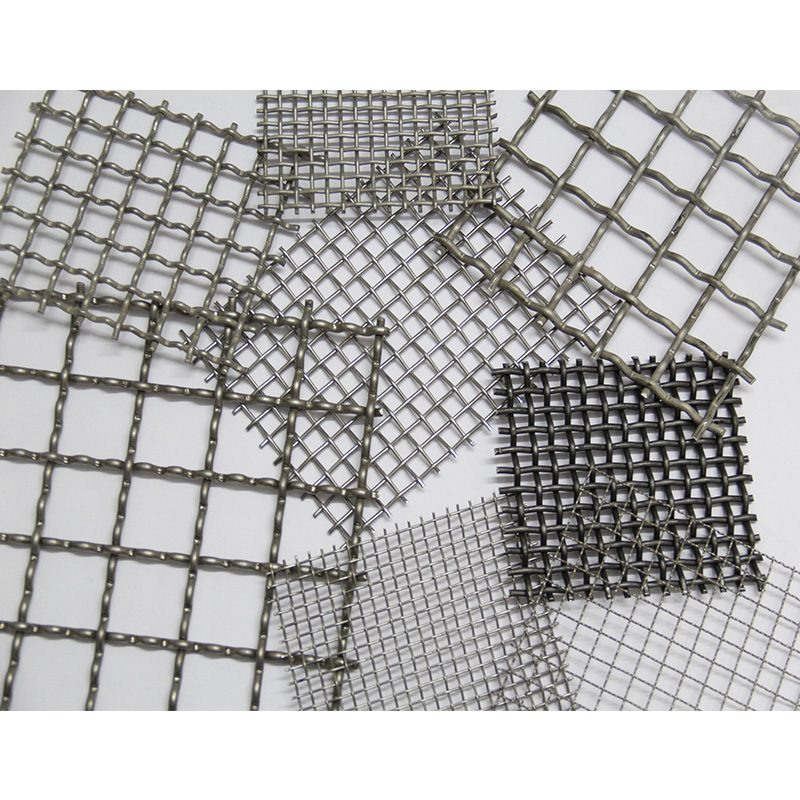

Double Crimp Wire Cloth

Both warp and shute wires are crimped at the point of intersection to keep the wires in position. The double crimp wire cloth wires are not crimped before weaving. The corrugation or depression that is crimped into both the warp and shute wires is a result of having a plain weave pattern calls for each shute wire to pass over and under successive rows of warp wires and vice versa, like interlacing fingers.

Inter-Crimp Wire Cloth

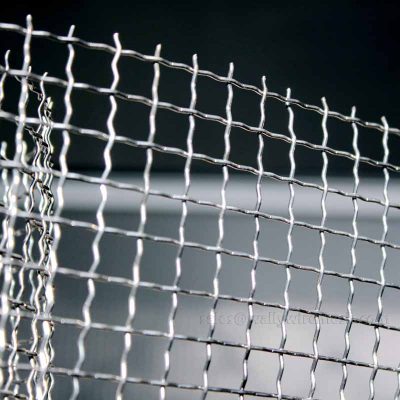

Woven Wire cloth with an extra crimp in both warp and fill wire. Both the warp and shute wires are crimped with extra crimps or corrugations between the points of intersection. This technique is usually required when weaving large openings with fine wires.

Lock Crimp Wire Cloth

A refinement of the pre-crimp technique. The crimping of the warp and shute wires is done in such a manner to actually pull the wires together at their point of intersection, offering further assurance of no wire movement.

Simple WIRE MESH Ordering. Please specify:

Number of wire mesh pieces.
Width and length of each wire mesh piece.
Type of opening, square, oblong, long slot wire mesh.
Size of opening, specify clean opening in inches or fractions thereof, or wire mesh count if known. Wire Mesh count is the number of openings per linear inch measured from center to center of the wires.
Wire mesh diameter expressed in decimals of an inch or fractions.
Type of wire mesh weave: double crimp, lock crimp, flat top, etc.
Type of metal or alloy, i.e., steel, stainless steel, aluminum.

Packaging & Shipping
Packing: by pvc shrinked or carton & pallet as request.
FAQ

Q: Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: Do you have ISO & CE standard certificate ?
A: Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How many days will the samples be finished? And how about the mass production?
A: Generally,2 days for samples ,the time of mass production depends on the quantity,25 -30 days.

We also produce stucco wire netting, rabbit fence, hardware cloth, chain link fence, deer fence, field fence
Most of our product are for export, well sold in the USA, Germany, Europe, Canada, Africa and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.
