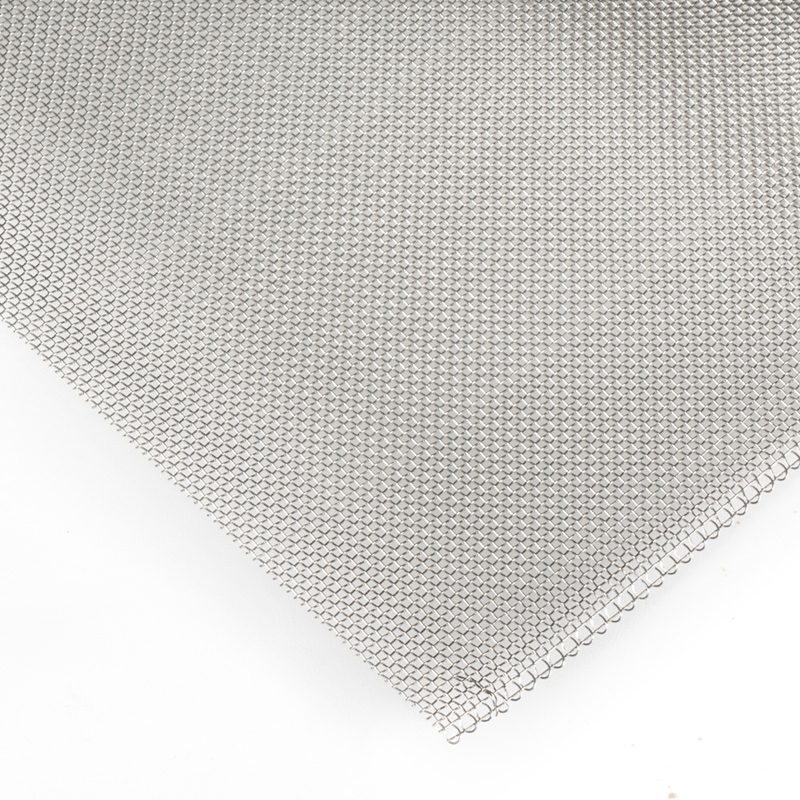

Stainless Steel Woven Wire Mesh Screen , High Tensile Stainless Steel Mesh Wire
Stainless Steel WIre Mesh AISI304 8/0.71mm x 1000mm For Filtration
Description
- Material: Stainless steel (aisi304, 316, 304L, 316L, 321).
-
Width: from 1000mm to 2000mm.
-
Length: the standard length is 30.5m.
-
Woven Type: Plain Weave.
| Specifications | U.S. |
Metric
|
|
Mesh Size |
8 per in |
8 per 25.4 mm |
| Wire Diameter | 0.028 in | 0.7112 mm |
| Opening | 0.097 in | 2.4638 mm |
| Opening % | 60 % | 60 % |
| Weight / sq. ft | 0.4200 lb | 0.1907 kg |
Description
D: Wire diameter before weaving, in mm
W: (Aperture) Space between adjacent parallel wires in mm
P: Distance between the centers of two adjacent wire, in mm
Warp: wires running lenthwise in the cloth as woven
Weft: wires running crosswise in the cloth as woven
Open area: Factional open surface area of the wire cloth in the flow direction (applicable for square meshes only). Mesh: 25.4/(D+W)
| Material | Mesh | Wire Diam | Opening | Open area | Weight | |||
| inch | mm | inch | mm | % | kg/m² | |||
| aisi304 | 8 | 0.032” | 0.81 | 0.0931” | 2.37 | 55.5 | 2.62 | |
| aisi304 | 8 | 0.028” | 0.71 | 0.097” | 2.46 | 60.2 | 2.02 | |
| aisi304 | 10 | 0.025” | 0.64 | 0.075” | 1.91 | 56.3 | 2.05 | |
| aisi304 | 10 | 0.02” | 0.51 | 0.08” | 2.03 | 64 | 1.30 | |
FAQ
Q: Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: Do you have ISO & CE standard certificate ?
A: Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How many days will the samples be finished? And how about the mass production?
A: Generally,2 days for samples ,the time of mass production depends on the quantity,25 -30 days.
Most of our product are for export, well sold in the USA, Germany, Europe, Canada, Africa and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.
