Gabion mesh/hexagonal hole wire mesh gabion/galvanized gabion wire mesh
Gabion basket is a cage made of Hexagonal wire, the wire diameter is based on the size of hexagonal. If use metal coated wire, the diameter to be 2.0mm-4.0mm,If use PVC coated wire, The OD to be 3.0-4.5mm, the wire diameter of frame edge is larger than hexagonal wire, In recent years, an emerging zinc-aluminum alloy gabion basket which coated with zinc and aluminum and Mixed rare earth alloy, is more Corrosion resistance than zinc coated gabions.

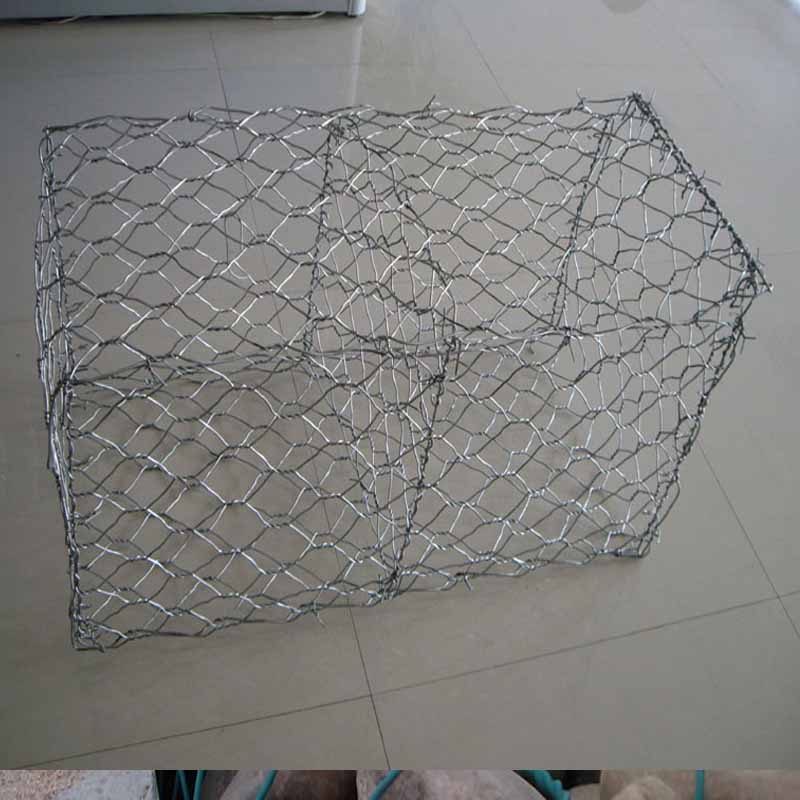

Gabion Basket
A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
| Gabion Basket | ||||
| Length (m) |
Width (m) |
Height (m) |
Number of Cell(each) |
Volume m3 |
| 2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
| 3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
| 4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
| 2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
| 3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
| 4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
| 2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
| 3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
| 4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Mattress
A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions;
gabion mattresses are generally used for riverbank protection and channel linings.
| Gabion Mattress | ||||
| Length (m) |
Width (m) |
Height (m) |
Number of Cell(each) |
Area m2 |
| 3.0 | 2.0 | 0.17 | 3.0 | 6.0 |
| 4.0 | 2.0 | 0.17 | 4.0 | 80 |
| 3.0 | 2.0 | 0.23 | 3.0 | 6.0 |
| 4.0 | 2.0 | 0.23 | 4.0 | 8.0 |
| 3.0 | 2.0 | 0.3 | 3.0 | 6.0 |
| 4.0 | 2.0 | 0.3 | 4.0 | 8.0 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Sacks
Gabion sacks are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth’s shear strength, well for whole structure’s stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.
Hexagonal opening (aperture):80x100mm
Wire diameter: 2.7mm
Selvedge wire: 3.4mm.
We also produce gabion box, gabion basket , gabion wall , gabion mattresses, hesco barrier etc
Our experienced staff can produce wire mesh processed products according to our customers’ demands.
