100*30*30cm Galvanized Gabion Box, Welded Gabion Design


Packaging Details: Water Proof Paper, Wooden Case And Pallet
Supply Ability: 2000000 Piece/Pieces per Week
Delivery Time: 15 Days
Port: Tianjin Xingang



  • Advantage: directly manufacturer
  • Certificate : ISO9001:2008, CE, SGS

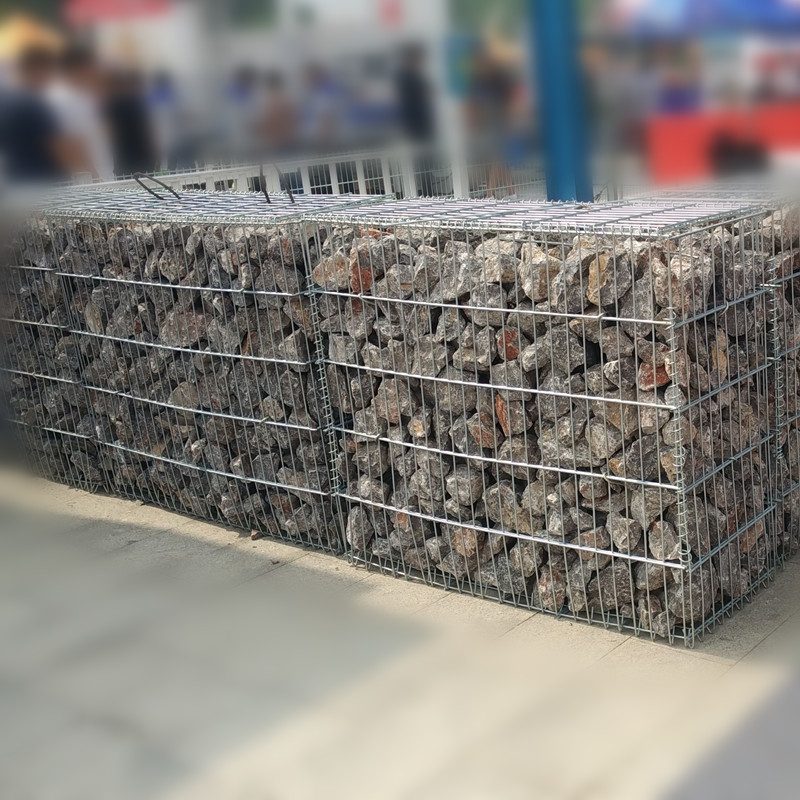

100*30*30cm Galvanized Gabion Box, Welded Gabion Design

Galvanized Welded Gabion ,Gabion Box,Welded gabions are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.



Joining: welded gabion box should be provided with lacing wire for site assembly, which should be? of minimum wire diameter 2.2mm for final joining.

Common Specification:

L x W x  D (cm) Diaphragms Capacity (m3) Mesh size (mm)   Standard wire dia. (mm)
100x30x30 0 0.09 50 x 50
75 x 75
100 x 50
 200 x 50
Heavily Galvanized zinc coated wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00
100x50x30 0 0.15
100x100x50 0 0.5
100x100x100 0 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
300x100x50 2 1.5
300x100x100 2 3
400x100x50 3 2

Other specifications can be customized,  please contact us.

Application for Retaining Gabion Basket, Gabion Wall, Welded Stone, Gabion Box


Q: Are you a manufacturer?
A:  Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: Do you have ISO & CE  standard certificate ?
A:  Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How can I get a quoation  ?
A: The specification ,  order quantity, etc.
Q: How about the delivery

A: Generally, the time of mass production depends on the quantity 25 -30 days.

We also produce  gabion box, gabion basket , gabion wall , gabion mattresses, hesco barrier  etc
Our experienced staff can produce wire mesh processed products according to our customers’ demands.


Your Wire Mesh Products Expert in China

retaining gabion wall, welded stone gabion box, gabion basket, gabion, hesco barrier , gabion mesh, rock gabion,galfan gabion mesh, Hebei Wally Group


Hot dipped galvanized, PVC coated wire, Gal-fan coated, Stainless steel wire


60x80mm, 80x100mm, 100x120mm, 120x150mm

Wire Diameter

3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm

Gabion Basket Sizes

1x1x1m, 1x1x0.5m, 2x1x1m, 2x1x0.5m, 3x1x1m, 3x1x0.5m, 4x1x1m, 4x1x10.5m
