Palisade Fencing with Angle Pale or Corrugated Pale

Packaging Details: Water Proof Paper, Wooden Case And Pallet
Supply Ability: 2000000 Piece/Pieces per Week
Delivery Time: 15 Days
Port: Tianjin Xingang

This product is currently out of stock and unavailable.

SKU: N/A Category: Tag:

OVERVIEW

Palisade Fencing

  • ISO Verified manufacturer

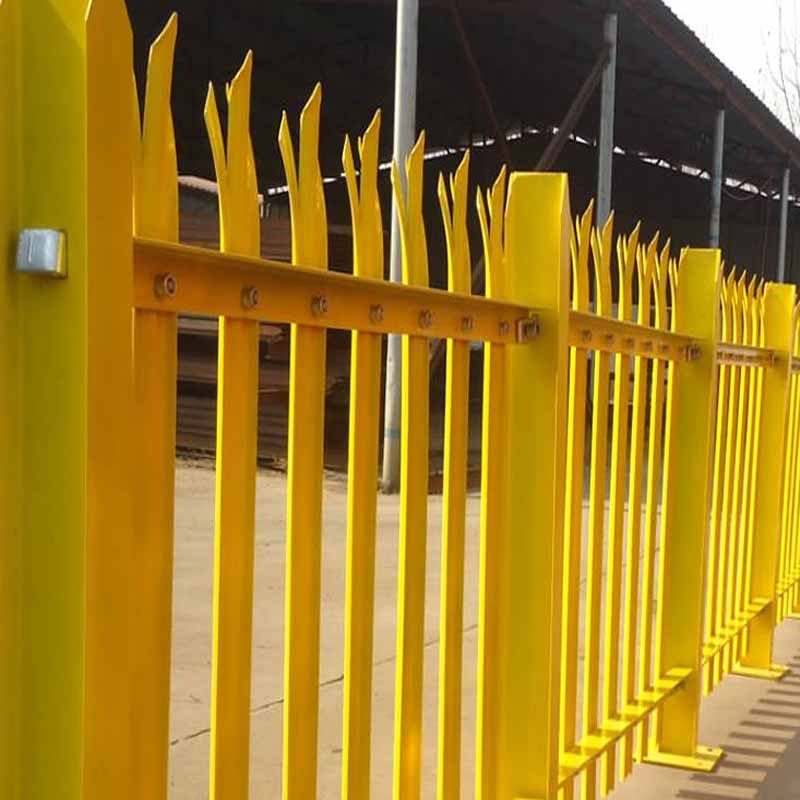

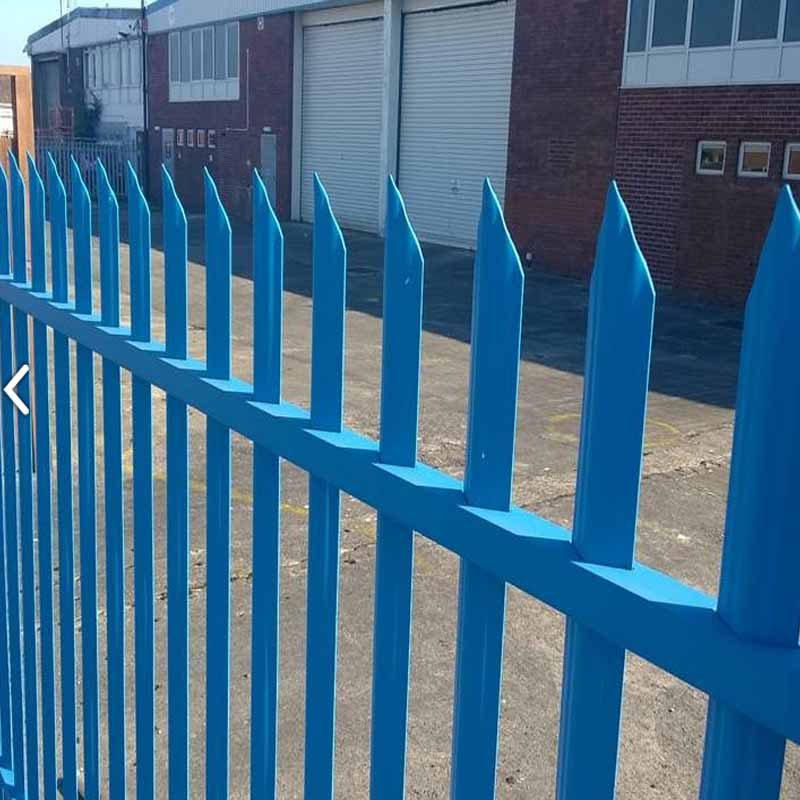

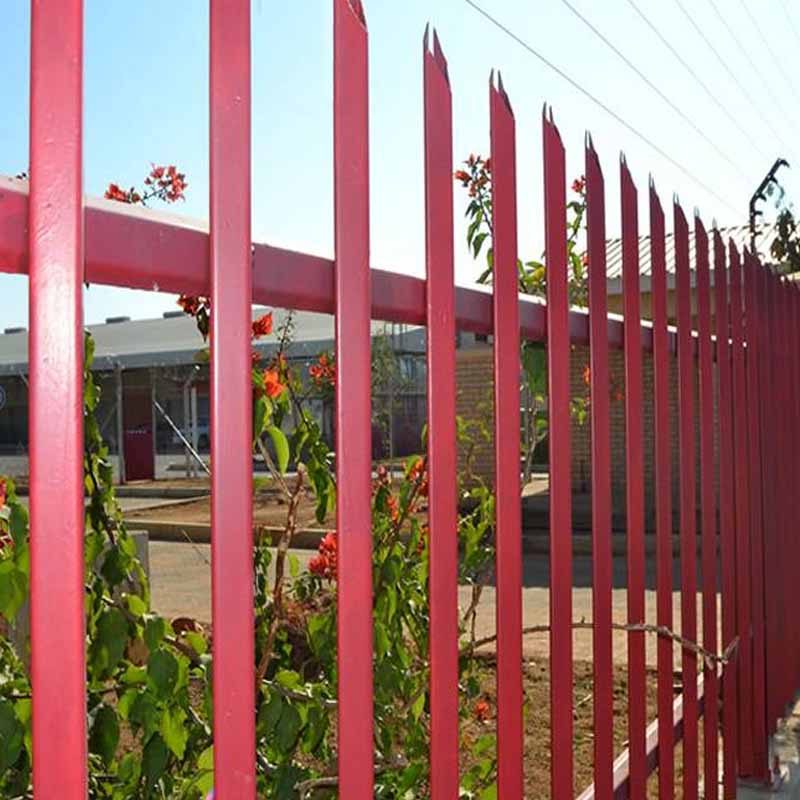

Palisade Fencing with Angle Pale or Corrugated Pale

Palisade fencing also called devils fork fencing can be divided into general palisade fencing and security palisade fencing according to the different specifications. General palisade fencing is shorter than security palisade fencing, which has angle type and corrugated type; but security palisade fencing has only corrugated type. With high strength, sharp prongs and narrow pale spacing, the steel palisade fencing can achieve high level of security to prevent intruders. It’s widely used for church fencing, residence fencing, factory fencing, road fencing and so on. For higher security level, palisade fence may be used with razor concertina wire coil on topping. ..

Feature

  • High strength and damage resistance.
  • Good security, sharp prongs threaten intruders.
  • Various colors for perfect aesthetic effect.
  • Easy installation and maintenance.
  • Durable and long service life.

Specification

  • Material  : Low carbon steel, stainless steel.
  • Surface treatment  : Galvanized, powder coated.
  • Common color  : White, black, green, yellow, blue.
  • Fence panel length (post center)  : 2.75 m.
  • Maximum pale spacing  : 155 mm for corrugated pales; 135 mm for angle pales.
  • Fence gate  :  Single leaf gate or double leaves gate.
  • Accessories  : Fish plates, post clamps, post bracket, bolts and nuts.
  Dimensions of General Palisade Fence and Security Palisade Fence
Item Fence Height Above Ground
(m)
Posts Horizontal Rails (Rolled Steel Angle Section)
(mm)
Pales Type
Rolled Steel Joist Section
(mm)
Embedded Length
(mm)
Angle
(mm)
Corrugated Sheet Thickness
(mm)
GPF-01 1.5 102 × 44 525 40 × 40 × 4 40 × 40 × 5 see table 2 general palisade fencing
GPF-02 1.8 102 × 44 525 40 × 40 × 4 40 × 40 × 5
GPF-03 2.1 102 × 44 625 45 × 45 × 4 40 × 40 × 5
GPF-04 2.4 102 × 44 725 45 × 45 × 4 40 × 40 × 5
SPF-01 3.0 127 × 76 925 50 × 50 × 6 see table 2 security palisade fencing
SPF-02 3.6 127 × 76 1125 75 × 50 × 6

 Thickness of Palisade Fencing Pale
Item Pale Profile Type Thickness (mm)
PFP-01 corrugated “W” section general palisade fencing 2.5
security palisade fencing 3.0
PFP-02 corrugated “D” section general palisade fencing 3.0
security palisade fencing 3.9

We also produce welded wire fence canada temporary fence, portable fence,   palisade fence , crowd control barrier ,steel fence ,

 Most of our product are for export, well sold in the USA, Germany, Europe, Canada and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.

Your Wire Mesh Products Expert in China



Material

Low carbon steel, stainless steel.

Surface treatment

Galvanized, powder coated.

Color

White, black, green, yellow, blue.

Accessories

Fishplates ,post clamps, post bracket ,bolts and nuts.
