1x1x2m pvc coated gabion mesh for river block

$10.00$13.00

Packaging Details: Water Proof Paper, Wooden Case And Pallet
Supply Ability: 2000000 Piece/Pieces per Week
Delivery Time: 15 Days
Port: Tianjin Xingang

Clear

OVERVIEW

  • Advantage: directly manufacturer
  • Certificate : ISO9001:2008, CE, SGS

1x1x2m pvc coated gabion mesh for river block

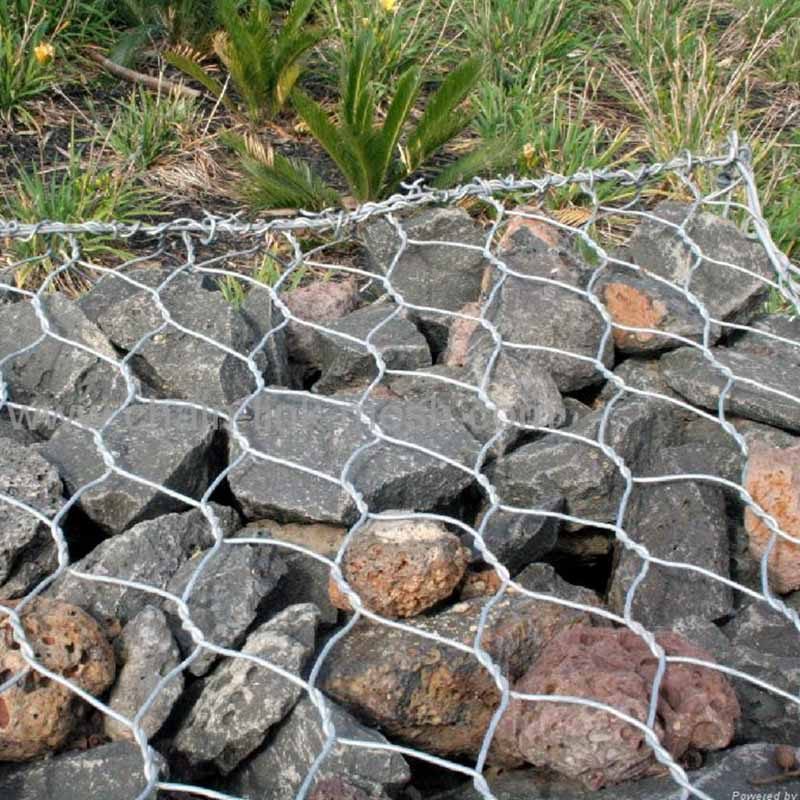

pvc coated gabion mesh for river block is a cage made of Hexagonal wire, the wire diameter is based on the size of hexagonal. If use metal coated wire, the diameter to be 2.0mm-4.0mm,If use PVC coated wire, The OD to be 3.0-4.5mm, the wire diameter of frame edge is larger than hexagonal wire, In recent years, an emerging zinc-aluminum alloy gabion basket which coated with zinc and aluminum and Mixed rare earth alloy, is more Corrosion resistance than zinc coated gabions.

Gabion Basket

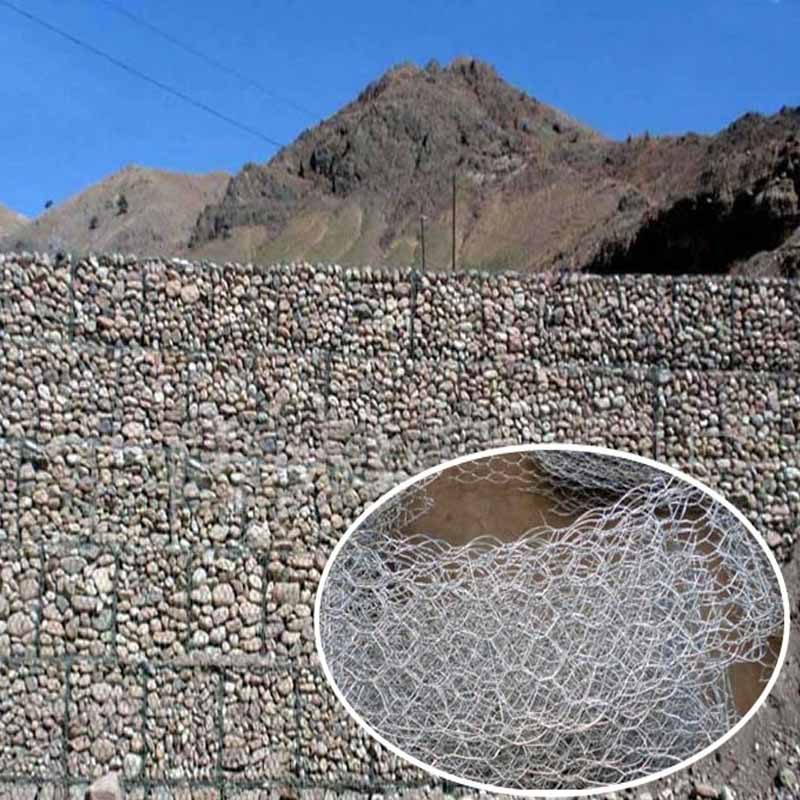

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Gabion Basket
Length
(m)
Width
(m)
Height
(m)
Number of
Cell(each)
Volume
m3
2.0 1.0 1.0 2.0 2.0
3.0 1.0 1.0 3.0 3.0
4.0 1.0 1.0 4.0 4.0
2.0 1.0 0.5 2.0 1.0
3.0 1.0 0.5 3.0 1.5
4.0 1.0 0.5 4.0 2.0
2.0 1.0 0.3 2.0 0.6
3.0 1.0 0.3 3.0 0.9
4.0 1.0 0.3 4.0 1.2

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

Gabion Mattress

A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions;
gabion mattresses are generally used for riverbank protection and channel linings.

Gabion Mattress
Length
(m)
Width
(m)
Height
(m)
Number of
Cell(each)
Area
m2
3.0 2.0 0.17 3.0 6.0
4.0 2.0 0.17 4.0 80
3.0 2.0 0.23 3.0 6.0
4.0 2.0 0.23 4.0 8.0
3.0 2.0 0.3 3.0 6.0
4.0 2.0 0.3 4.0 8.0

The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc

Gabion Sacks

Gabion sacks  are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth’s shear strength, well for whole structure’s stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.
Hexagonal opening (aperture):80x100mm
Wire diameter: 2.7mm
Selvedge wire: 3.4mm.



We also produce  gabion box, gabion basket , gabion wall , gabion mattresses, hesco barrier  etc
Our experienced staff can produce wire mesh processed products according to our customers’ demands.

CLICK HERE COME BACK TO  GABION

Your Wire Mesh Products Expert in China

retaining gabion wall, welded stone gabion box, gabion basket, gabion, hesco barrier , gabion mesh, rock gabion,galfan gabion mesh, Hebei Wally Group

Material

Hot dipped galvanized, PVC coated wire, Gal-fan wire, 10% aluminum – zinc alloy

Aperture

5cm x 7cm, 6 cm × 8 cm, 8 cm × 10 cm, 8 cm x 12cm, 10cm x 12cm

Wire Diameter

2.0mm, 3.0mm, 3.5mm, 4.0mm

Gabion Basket Sizes

2x1x1m, 3x1x1m, 4x1x1, 5x1x1, 6x1x1, 3×1.5×1, 2x1x0.5, 3x1x0.5, 4x1x0.5, 5x1x0.5, 6x1x0.5, 3×1.5×0.5, 4x2x0.5, 4x2x0.5m
