Retaining Gabion Wall, Welded Stone Gabion Box


Packaging Details: Water Proof Paper, Wooden Case And Pallet
Supply Ability: 2000000 Piece/Pieces per Week
Delivery Time: 15 Days
Port: Tianjin Xingang



Retaining Gabion Wall, Welded Stone Gabion Box

Retaining Gabion Wall, Welded Stone Gabion Box,Welded gabions are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.

Hot dipped galvanized
PVC coated wire
Gal-fan coated (95% Zinc 5% Aluminum for up to 4 times the life of a galvanized finish)
Stainless steel wire

Technical Note:
Mesh Size: Mesh openings should be square of nominal dimension of 76.2 mm on the grid.
Mesh Wire: Nominal wire diameter should be 3.0mm to BS 1052.
Standard Sizes: 2mx1mx1m, 2mx 1mx0.5m, 1mx1mx1m, 1mx1mx0.5m, 1.5m x1mx1m
Surface Treatment: 95% zinc 5% aluminium coating for corrosion resistance
Assembly: Assembled with stainless steel clips connecting side panels and diaphragms to the base panel


Joining: welded gabion box should be provided with lacing wire for site assembly, which should be? of minimum wire diameter 2.2mm for final joining.

Major Applications of Welded Gabions:
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection

Common Specification:

L x W x  D (cm) Diaphragms Capacity (m3) Mesh size (mm)   Standard wire dia. (mm)
100x30x30 0 0.09 50 x 50
75 x 75
100 x 50
 200 x 50
Heavily Galvanized zinc coated wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00
100x50x30 0 0.15
100x100x50 0 0.5
100x100x100 0 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
300x100x50 2 1.5
300x100x100 2 3
400x100x50 3 2

Other specifications can be customized,  please contact us.

Commercial Fence is produced in the same variety of heights as our other product, with a 6” or 12” stay opening in 330’ rolls. The Commercial Fence is made with a 14 gauge commercial coated galvanized wire, which makes it a great economical fence for your lighter fencing needs.

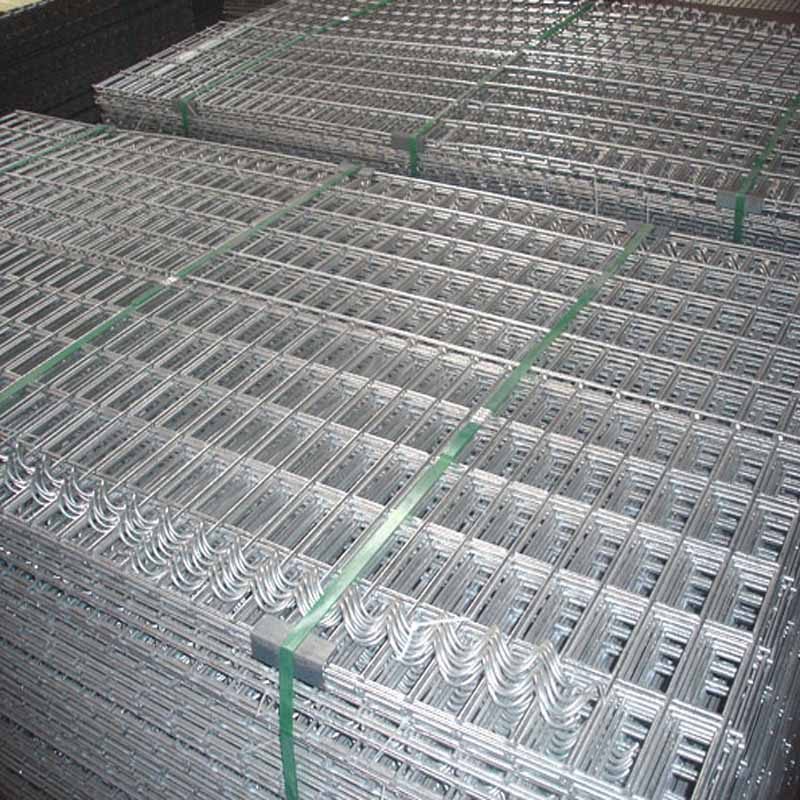

Packaging & Shipping
Packing: by bulk or pallet.

Q: Are you a manufacturer?
A:  Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: Do you have ISO & CE  standard certificate ?
A:  Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How can I get a quoation  ?
A: The specification ,  order quantity, etc.
Q: How about the delivery

A: Generally, the time of mass production depends on the quantity 25 -30 days.

We also produce  gabion box, gabion basket , gabion wall , gabion mattresses, hesco barrier  etc
Our experienced staff can produce wire mesh processed products according to our customers’ demands.


Your Wire Mesh Products Expert in China

retaining gabion wall, welded stone gabion box, gabion basket, gabion, hesco barrier , gabion mesh, rock gabion,galfan gabion mesh, Hebei Wally Group


Hot dipped galvanized, PVC coated wire, Gal-fan coated, Stainless steel wire


60x80mm, 80x100mm, 100x120mm, 120x150mm

Wire Diameter

3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm

Gabion Basket Sizes

1x1x1m, 1x1x0.5m, 2x1x1m, 2x1x0.5m, 3x1x1m, 3x1x0.5m, 4x1x1m, 4x1x10.5m
